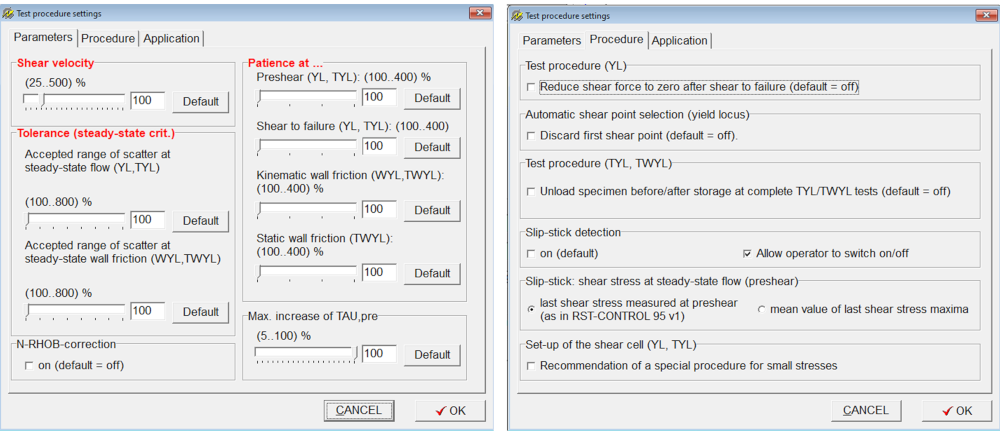

SETTINGS FOR LARGE AND SMALL CELLS FOR ALL MEASUREMENTS.
The measuring pressures are set at 20kPa, 10kPa and 5kPa. For every pressure it is recommended to make 10 representative measurements to determine the measurement uncertainties.

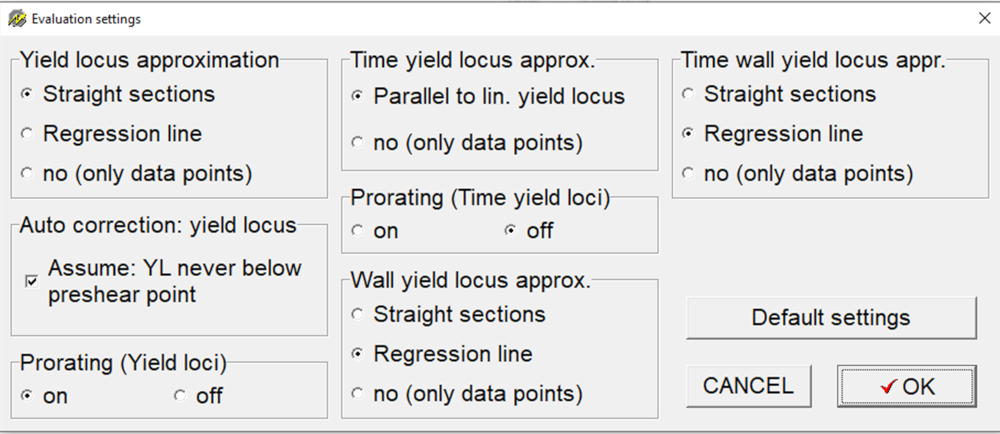

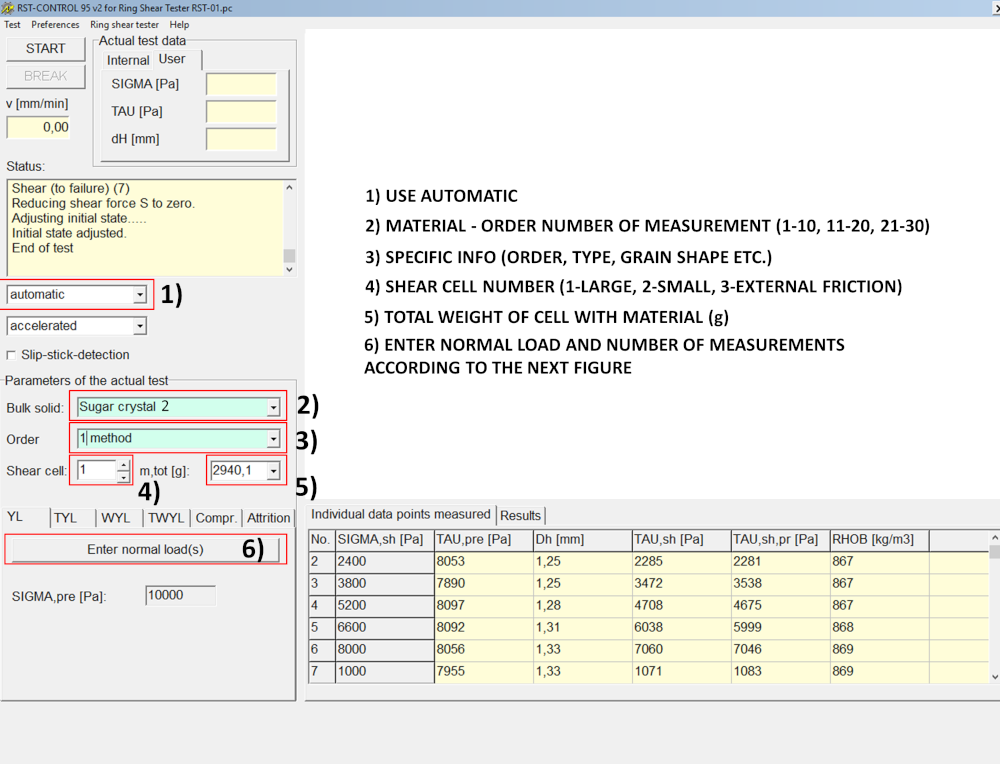

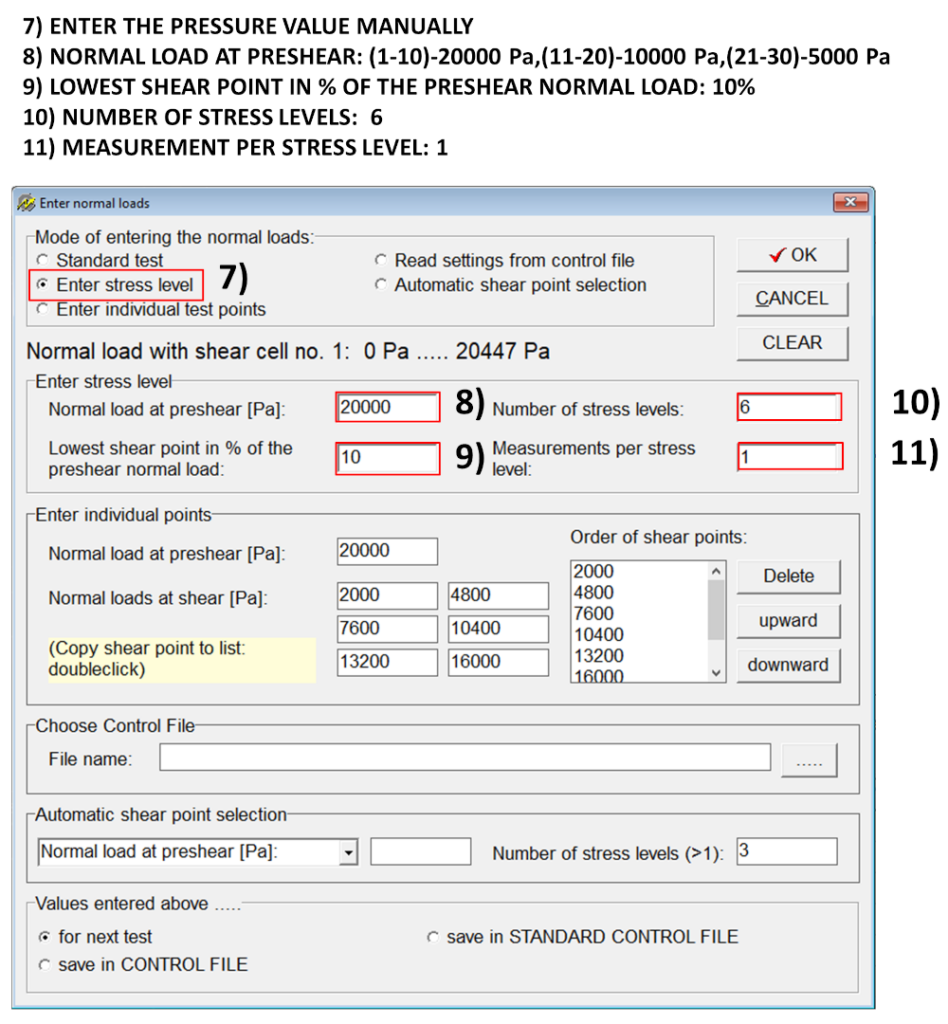

Entering measurement parameters
| USED NORMAL LOAD | MEASUREMENT (1-10) (Pa) | MEASUREMENT (11-20) (Pa) | MEASUREMENT (21-30) (Pa) |
|---|---|---|---|
| Normal load at preshear | 20000 | 10000 | 5000 |
| Normal load at shear point 1 | 2000 | 1000 | 500 |
| Normal load at shear point 2 | 4800 | 2400 | 1200 |
| Normal load at shear point 3 | 7600 | 3800 | 1900 |
| Normal load at shear point 4 | 10400 | 5200 | 2600 |
| Normal load at shear point 5 | 13200 | 6600 | 3300 |
| Normal load at shear point 6 | 16000 | 8000 | 4000 |
| Control normal load at shear point 7 | 2000 | 1000 | 500 |
| USED NORMAL LOAD – CONNECTION TOGETHER | MEASUREMENT (1-30) (Pa) |
|---|---|
| Normal load at shear point 1 | 500 |
| Normal load at shear point 2 | 1000 |
| Normal load at shear point 3 | 1200 |
| Normal load at shear point 4 | 1900 |
| Normal load at shear point 5 | 2000 |
| Normal load at shear point 5 | 2400 |
| Normal load at shear point 6 | 2600 |
| Normal load at shear point 7 | 3300 |
| Normal load at shear point 8 | 3800 |
| Normal load at shear point 9 | 4000 |
| Normal load at shear point 10 | 4800 |
| Normal load at shear point 11 | 5200 |
| Normal load at shear point 12 | 6600 |
| Normal load at shear point 13 | 7600 |
| Normal load at shear point 14 | 8000 |
| Normal load at shear point 15 | 10400 |
| Normal load at shear point 16 | 13200 |
| Normal load at shear point 17 | 16000 |
| Max. normal load at preshear | 20000 |
More information about the measurement:
